Instructions of Ubibot Sensors Connection

Ubibot insists on researching and developing self-owned patent products, including the external sensors that match our sensing devices.

Different types of sensors can match with different device. Here are the instructions of how to use them.

Using WS1 device:

This device supports external temperature sensor. As it only has one USB port, only one sensor can be connected. When using USB power at the same time, one USB splitter is needed. Connect the splitter to the device USB port, one female port is for power and the other is for data transmission.

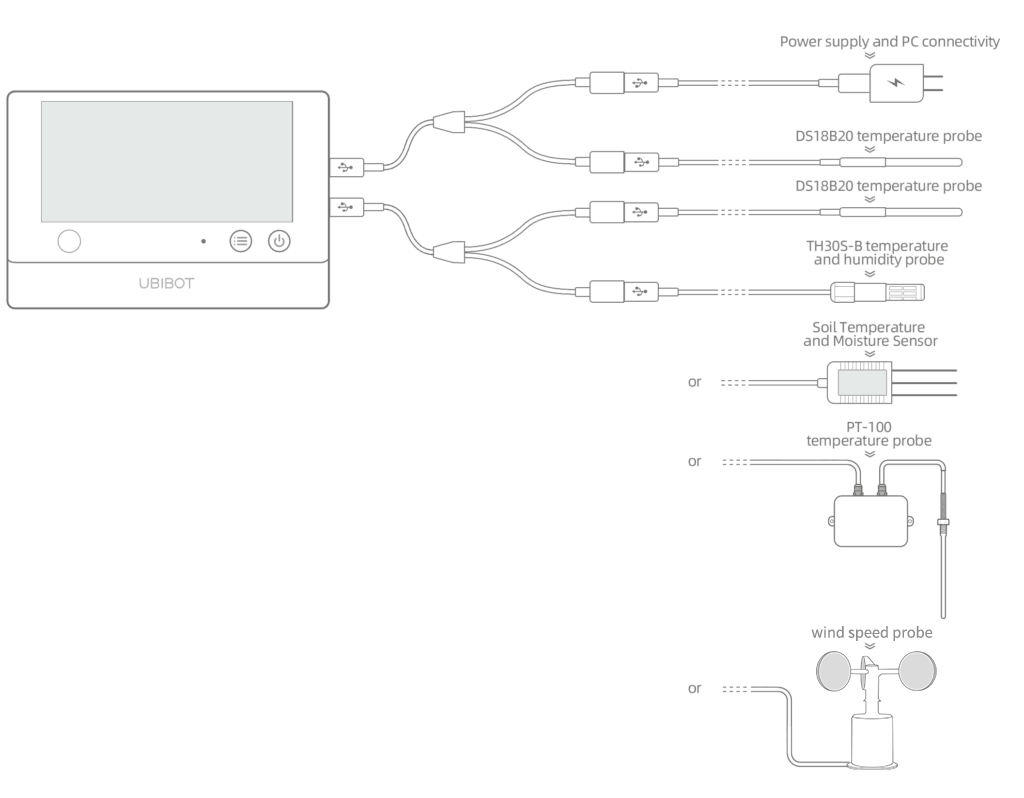

Using WS1 Pro device:

This device supports external temperature sensor, Air temperature & humidity sensor, Soil temperature and moisture sensor, PT100 temperature sensor, and wind speed sensor.

It has two USB ports, of which the lower one is embedded with RS485 interface. Except the temperature sensor, the others both need to be connected to this lower USB port. While, you can use temperature sensor on either of the USB port. When you need to power the device via Micro USB and you want to connect more than two sensors at the same time, please remember, the ends of the splitter must be connected with one power supply and one sensor, or one temperature sensor and one RS485 sensor. Two same sensors are not supported on one port.

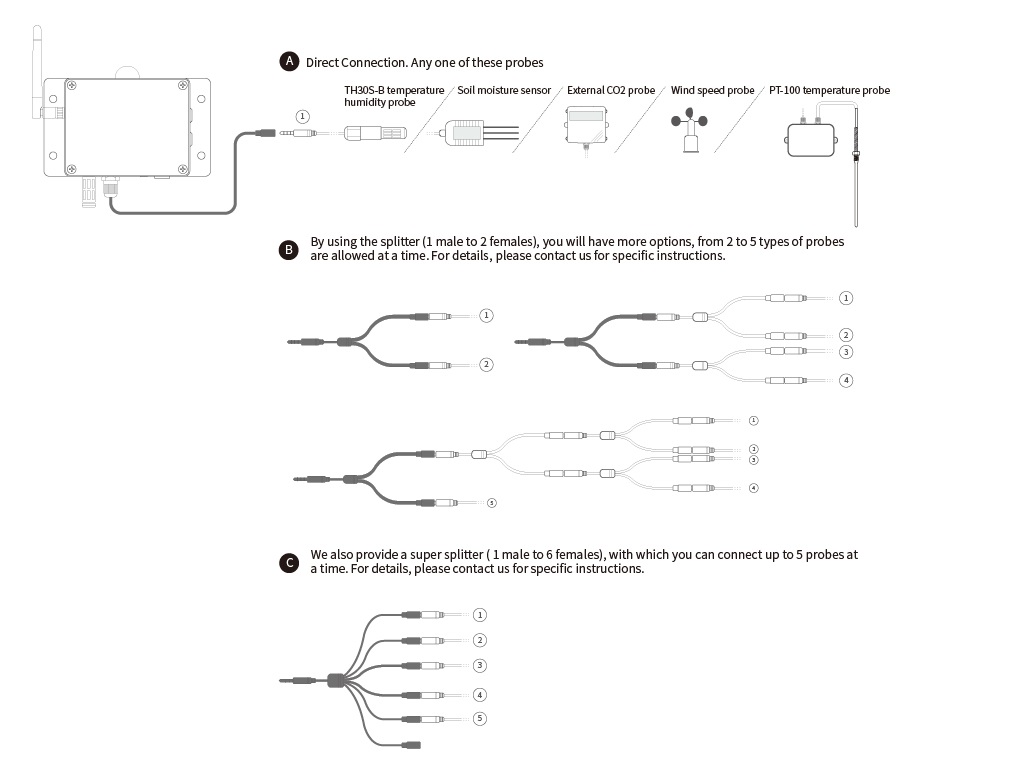

Using GS1 device:

The GS1 device is built with RS485 interface and audio jack. It supports all of the 6 types of Ubibot sensors , such as TH30S-B temperature humidity probe, Soil moisture probe, PT-100 temperature probe, CO2 probe, wind speed probe, external light probe.

If you only need one type sensor, you can connect it to the device directly. If you need more than one type, our splitters will allow you to attach multiple sensor simultaneously. Please see the following cutline for reference.

Please note, only one piece of sensor of each type is supported. You can not attach two or more of the same sensors at a time.  For details, please contact us for specific instructions.
